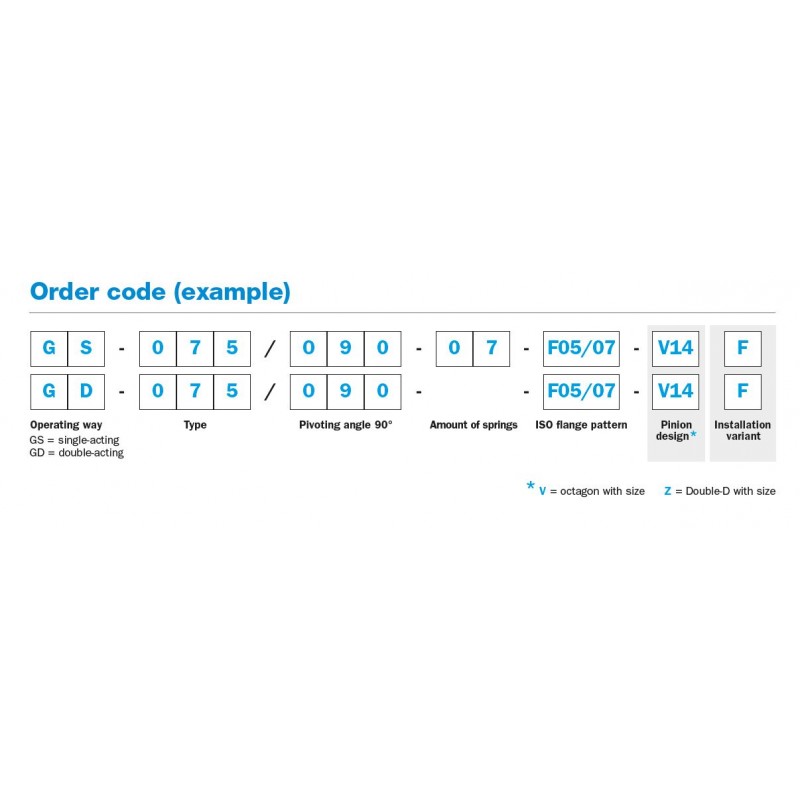

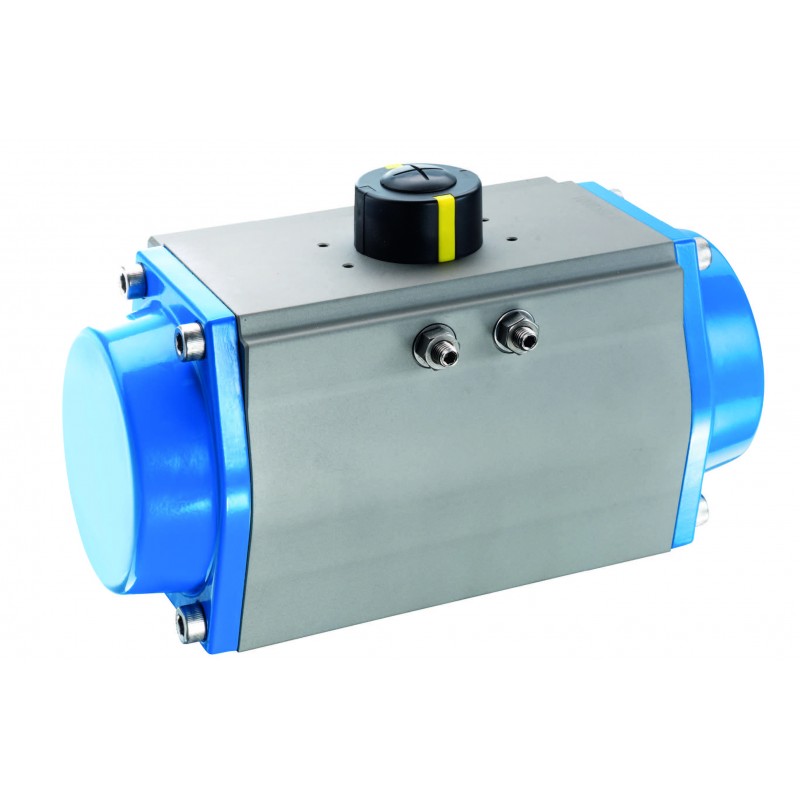

BAR AG turn Single Acting Actuator GS-140/090-09-F10/F12-V27-F

pivoting angle 90°, shaft octag. 27mm

drill template F10 + F12

pneumatic connection G-1/4"

spring force right turning (cw)

max. working pressure 8,0bar

temperature range: -20°C to +80°C

ATEX II 2 G Ex h IIC T6..T3 Gb - II 2 D

Ex h IIIC T180°C Db

Interfaces acc. to EN ISO 5211

and VDI/VDE 3845 (NAMUR) - 80x30
