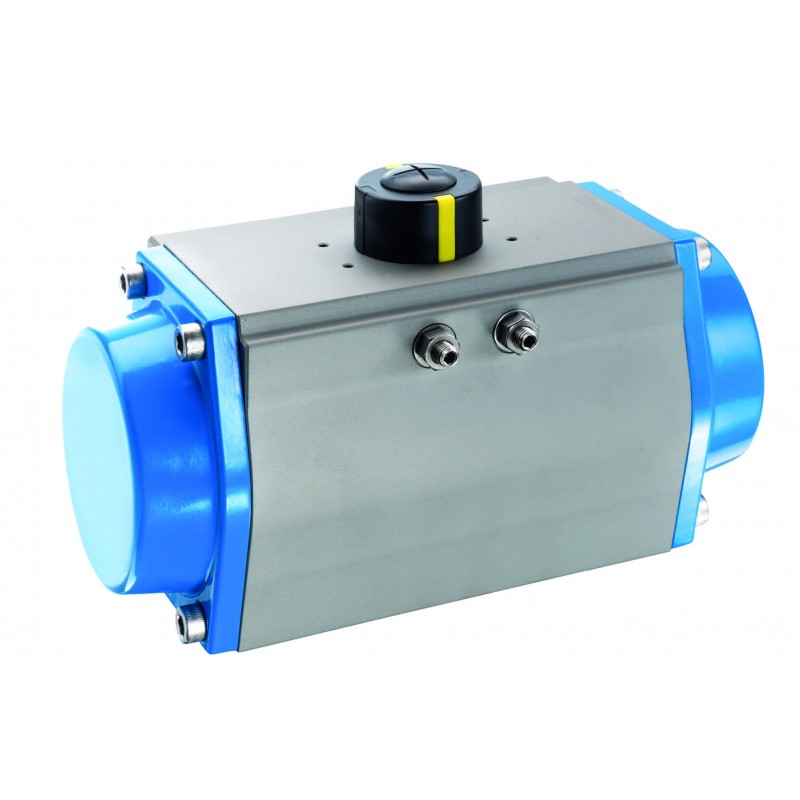

BAR AG Turn Double Acting Actuator GD-210/090-F14-V36--

GD-210/090-F14-V36-

BAR AG Turn Double Acting Actuator GD-210/090-F14-V36--

Prices on request

BAR ACTUATOR GD/GS Description

Smulkiau

0,00 €

Apie prekę

Pneumatic quarter-turn actuator
Type GD: double acting

As standard:
• Torque: up to 9768 Nm (6 bar)
• Operating angle: 90° (option 120°, 135°, 180°)
• Control pressure: up to 8 bar
• Up to 12 springs for GS-052 to 350) and 16
springs for GS-400
• Operating temperature: -20 °C to +80 °C
• Materials:
Housing: Aluminium-alloy, hard anodised
Cap: Aluminium-alloy, powder-coated
Piston/rack: Aluminium-alloy
Pinion: corrosion-protected steel
Seals: NBR
Screws: stainless steel A2
• Connections:
Positioning device: VDI/VDE 3845 (NAMUR)
Air control: VDI/VDE 3845 (NAMUR)
Acuator/Valve: ISO 5211
• End stops adjustable between 0° and 90° (±5°)
On request:
• Other rotating angles
• PTFE housing and caps coating
• Double-D drive connection
• Stainless steel 316 drive system
• FKM seals
Options and accessories (p.X):
• Electropneumatic positioner
• End limit switch boxes
• Solenoid valves
• manual override
