BAR Single Acting Actuator ETE-4A-105/090-10-V17-F- 60001953

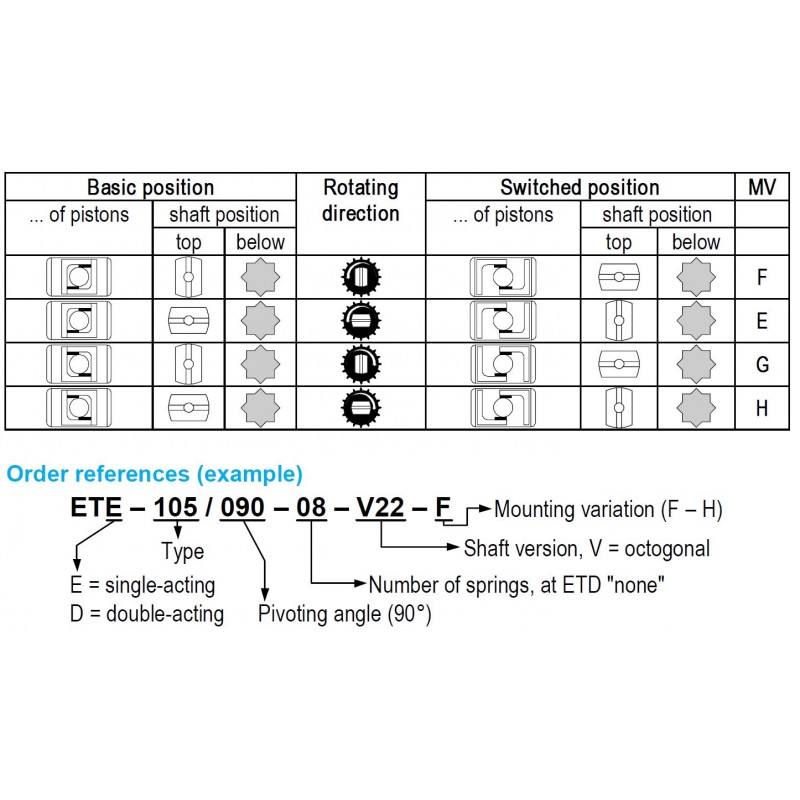

ETE-4A-105/090-10-V17-F-

BAR Single Acting Actuator ETE-4A-105/090-10-V17-F-   60001953

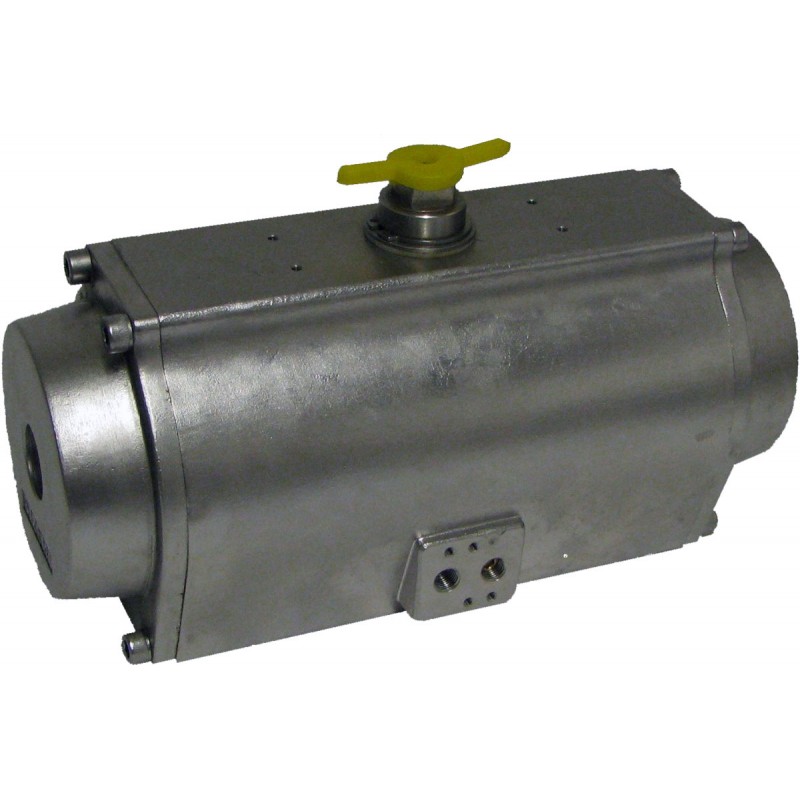

Stainless steel actuators are specially designed for use in aggressive environments, but offer same time the advantages of the standard series.

Applications are e.g. Food and drink-, Pharmaceutical, chemical, offshore, etc.

Prices on request

Technical data

Smulkiau

0,00 €

Apie prekę

Technical data
Type pneumatic twin-piston actuator
type ETD = double-acting
type ETE = single-acting (with spring return)
Construction features tooth rack and pinion technique with self-centering piston guidance
in the casing
single-acting: with bar safety springs
Mounting position random
Standards interface actuator/valve:
internal thread in the casing according to DIN/ISO 5211,
actuator shaft according to DIN 3337
interface actuator/control valve and actuator/signal units:
VDI/VDE 3845 (NAMUR)
Materials
Casing stainless steel AISI 316 (1.4408)
Cap stainless steel AISI 316 (1.4408)
Piston/racks stainless steel AISI 316 (1.4408)
Shaft stainless steel AISI 316 (1.4408)
Seals NBR
Bearings easy gliding plastic
Ambient temperatures -20° C to +80° C
Pivoting angle 90° ± 4°
Control pressure 2 to 8 bar
Control medium filtered air in according to DIN ISO 8573-1/class 4
Accessories on request
